GD-610B Insulator Faults Detector

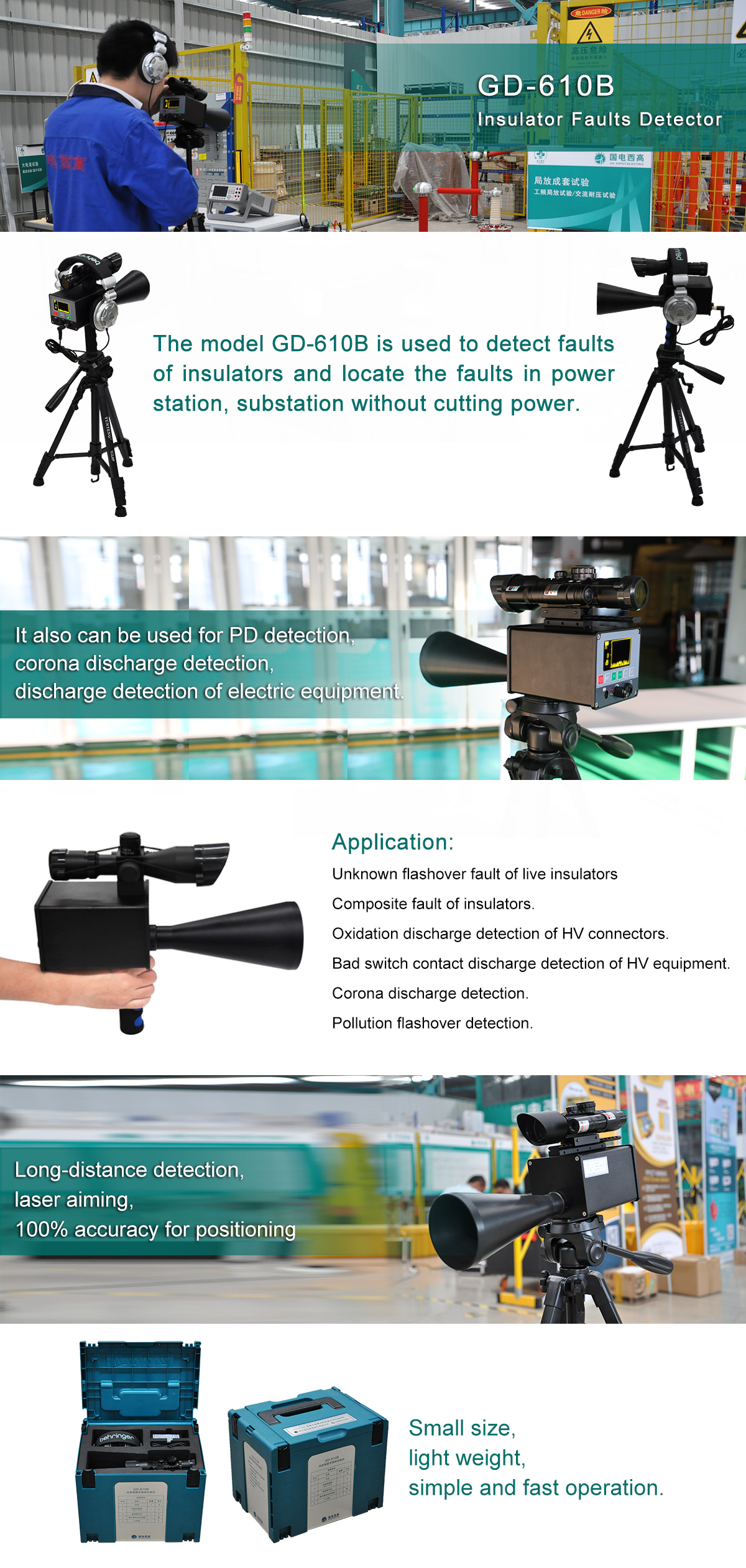

The model GD-610B is used to detect faults of insulators and locate the faults in power station, substation without cutting power. It also can be used for PD detection, corona discharge detection, discharge detection of electric equipment.

Chat Now

Product Introduction

GD-610B Insulator Faults Detector

Specification

Use range: 6kV~500kV

Host	Center frequency	40KHz±2Hz
	Sensitivity	Discharge mode: pinpoint arc discharge Discharge interval: 4mm
	Sensitivity	Voltage: AC 10kV distance 18M AC 35kV distance 25M AC 110kV distance 50M AC 220-500kV distance 50M
	Operating voltage	7.4V (lithium-ion batteries*2pcs)
	Dimension	250125140mm
Aluminum alloy bracket	Laser	Output wave length: 650nm Beam divergence: 0.4mard Output power: ≤ 50mw Dimension: 16*0mm
Aluminum alloy bracket	High frequency sensor	Center frequency (fo): 40kHz±2Hz Center capacitance (Co): 2500±20%pF Working temperature: -20-60℃ Weight: 2.17kg
Headphone	Rated impedance (Z)	125Ω
	Frequency range	100Hz-10KHz
	Sensitivity	(1W/1m) 60dB
Charger	Input voltage	AC 220V±10%
	Input frequency	50Hz±5%
	Output DC voltage	DC 8.4V
	Current	5A
Packing dimension of whole set: 470340420mm
Working temperature: -30-60℃; Humidity: (0~100)%RH
Complete packing weight: 7.18kg
